K. Prashant Drill

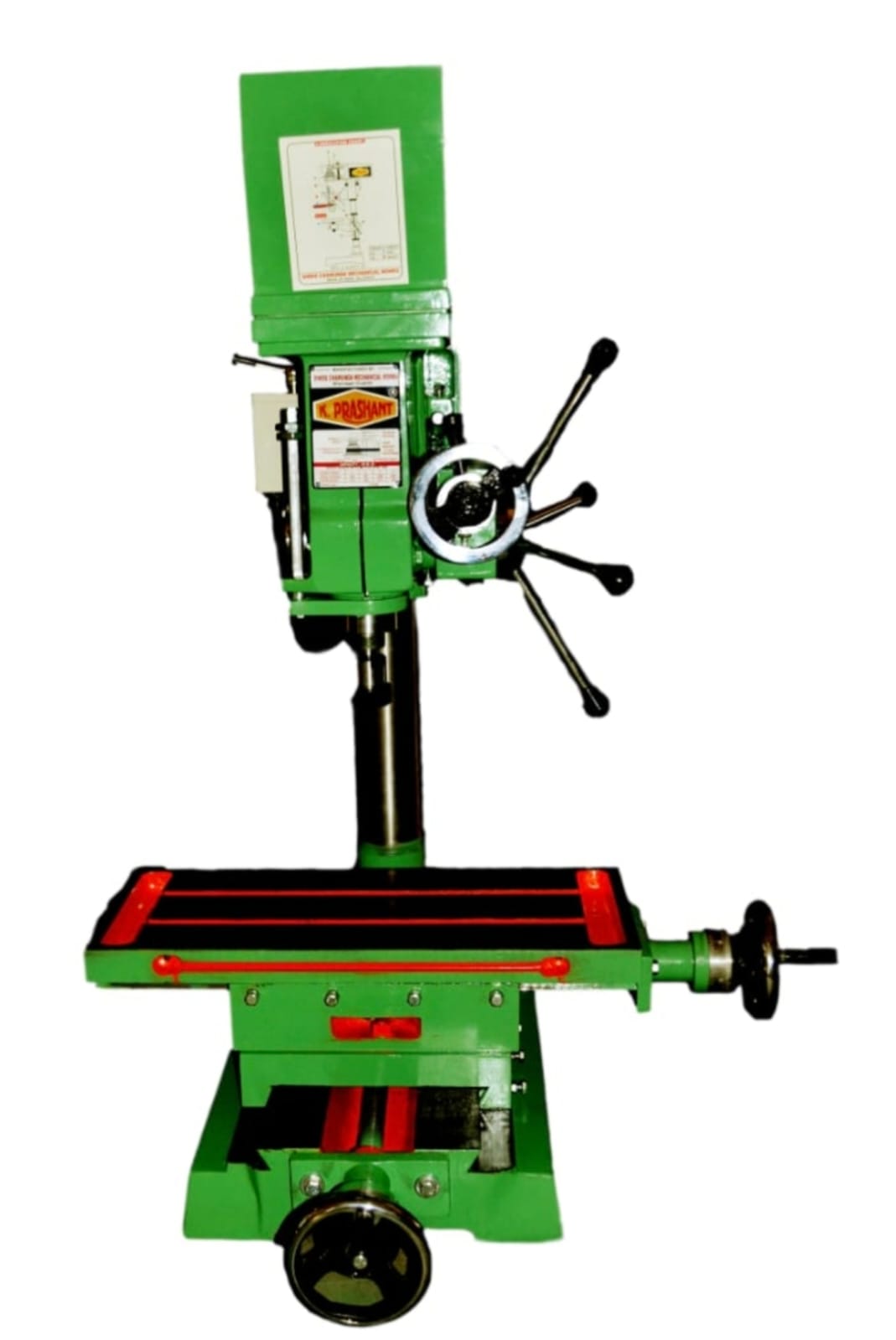

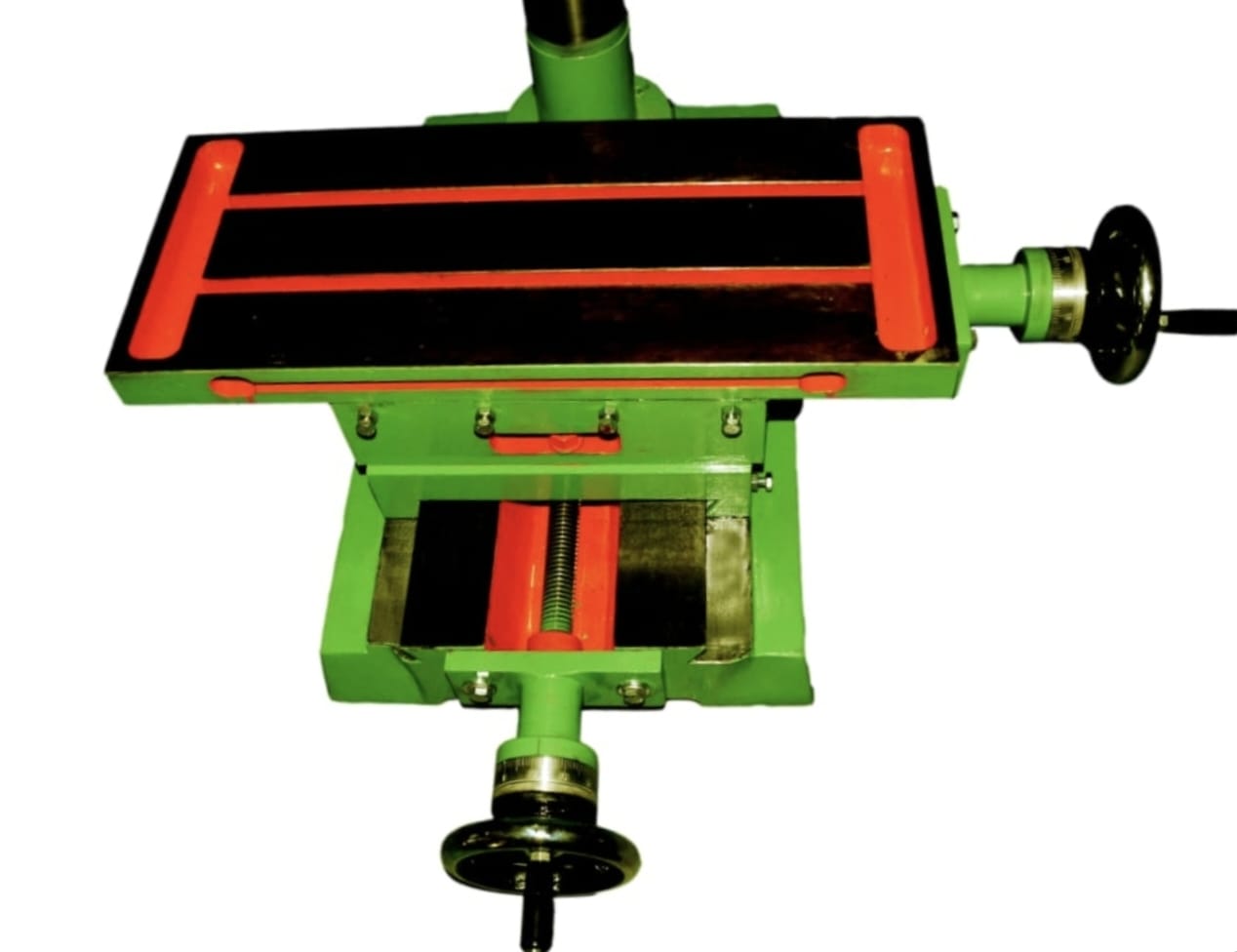

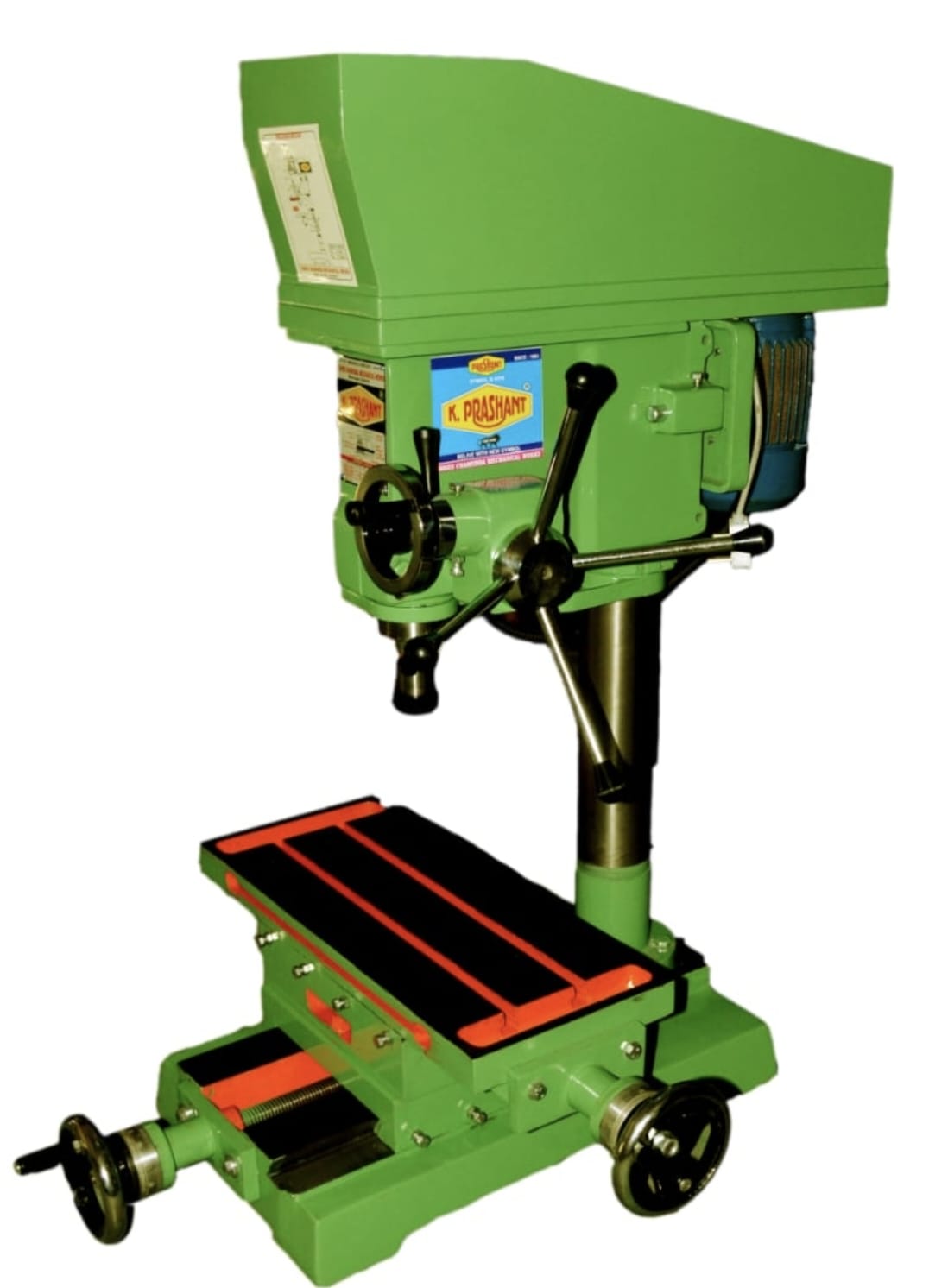

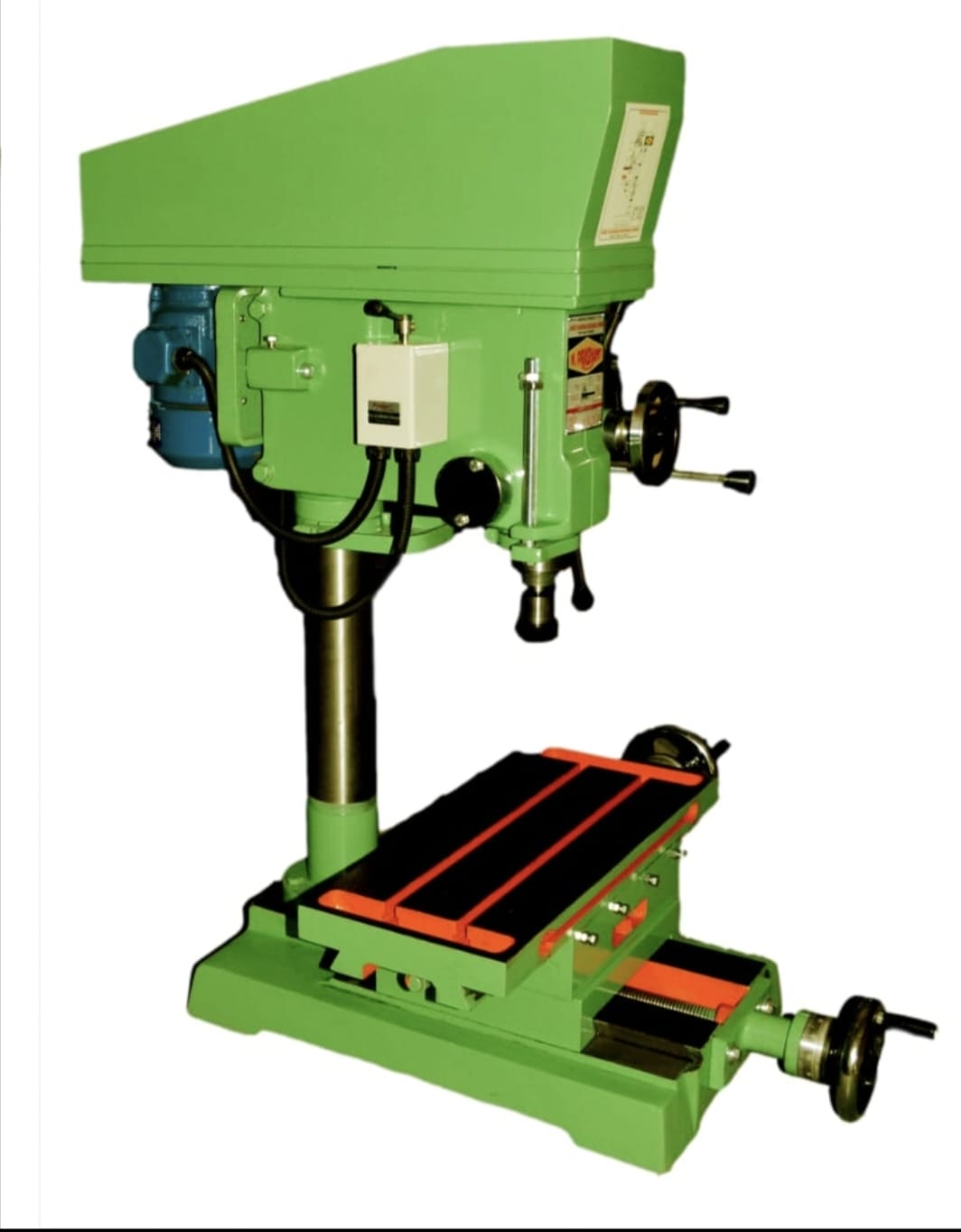

25mm (MT-3) Pillar Drilling cum Milling Machine
Shree Chamunda Mechanical Works manufacture and supply 25mm (MT-3) Pillar Drilling cum Milling Machine with following defined specification.
| 25mm (MT-3) Pillar Drilling Cum Milling Machine | |
|---|---|
| Drilling Capacity | 25 mm (1") |
| Diameter of Ram | 72 mm |
| Autofeed Range | Finefeed |
| Collet Holder | MT/3 |
| Spindle Travel | 152 mm (6") |
| Tapping in M.S. | 20 mm |
| Boring in M.S. | 20 mm |
| End Milling in M.S. | 15 mm |
| Overall Dimensions (L x W x H) | 625 x 375 x 115 mm |
| Max Distance from Spindle Nose to Table | 650 mm (26") |
| Working Table | 600 x 250 mm (24") |
| Column Diameter | 90 mm (3 9/16") |
| Column Height | 1020 mm (40") |
| Longitudinal Travel | 400 mm (16") |
| Cross Travel | 306 mm (12") |
| Spindle Nose Bore | MT=3 |
| Speed Range | 105 to 2651 RPM (8 Speeds) |
| Motor Speed | 1440 RPM |
| Motor | 1 HP |
| V-Belt | B-48 |
| Weight of Machine | 265 kg (Approx) |
| Accessories with Machine | Motor Pully, Motor Plate, Driff key |
| Extra Accessories | Electric motor, Drill Chuck, Arbor, Switch, V-Belt, Wire and Pin |
