Prashant Drill is rebranded as
K. Prashant Drill

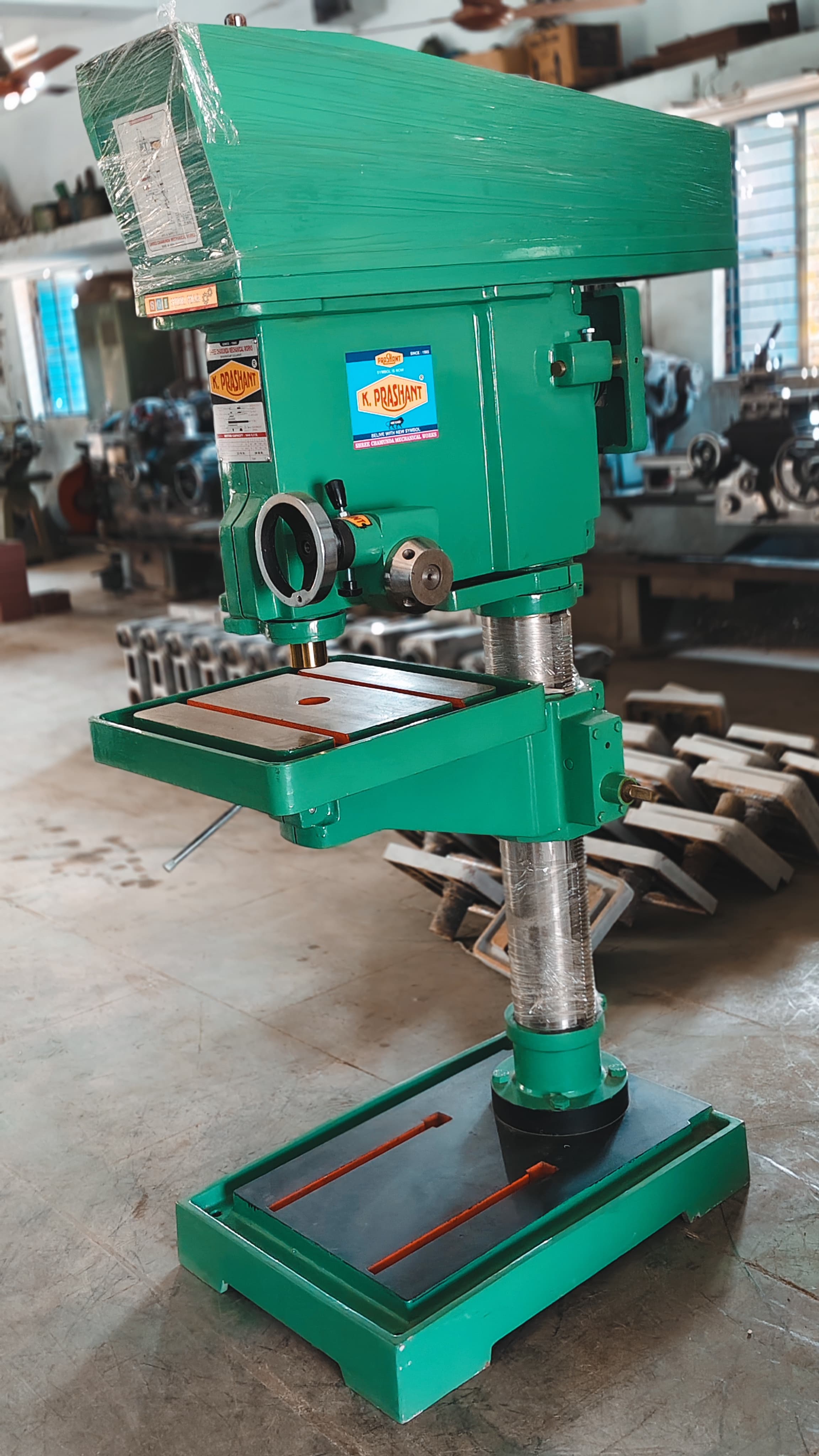

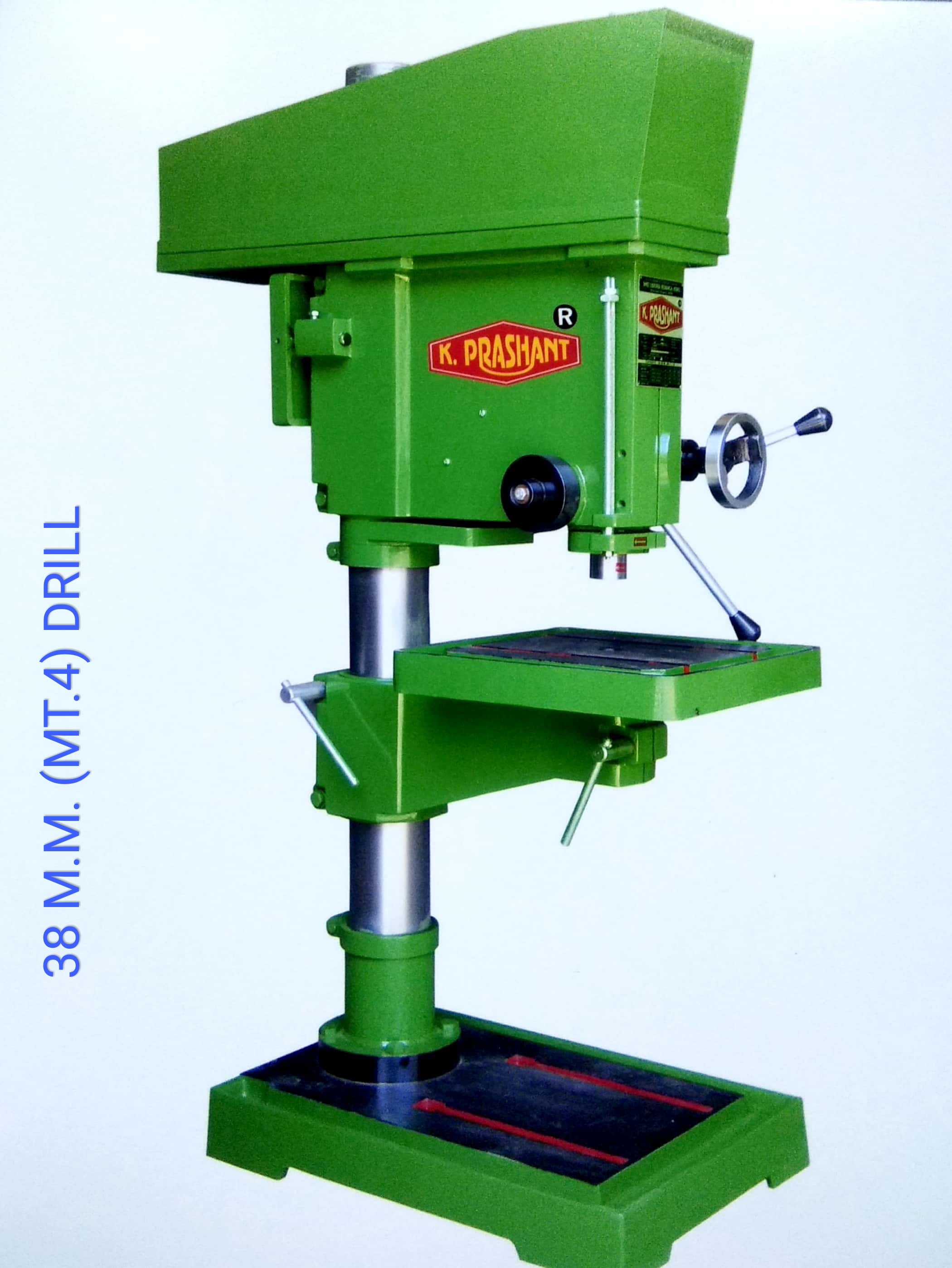

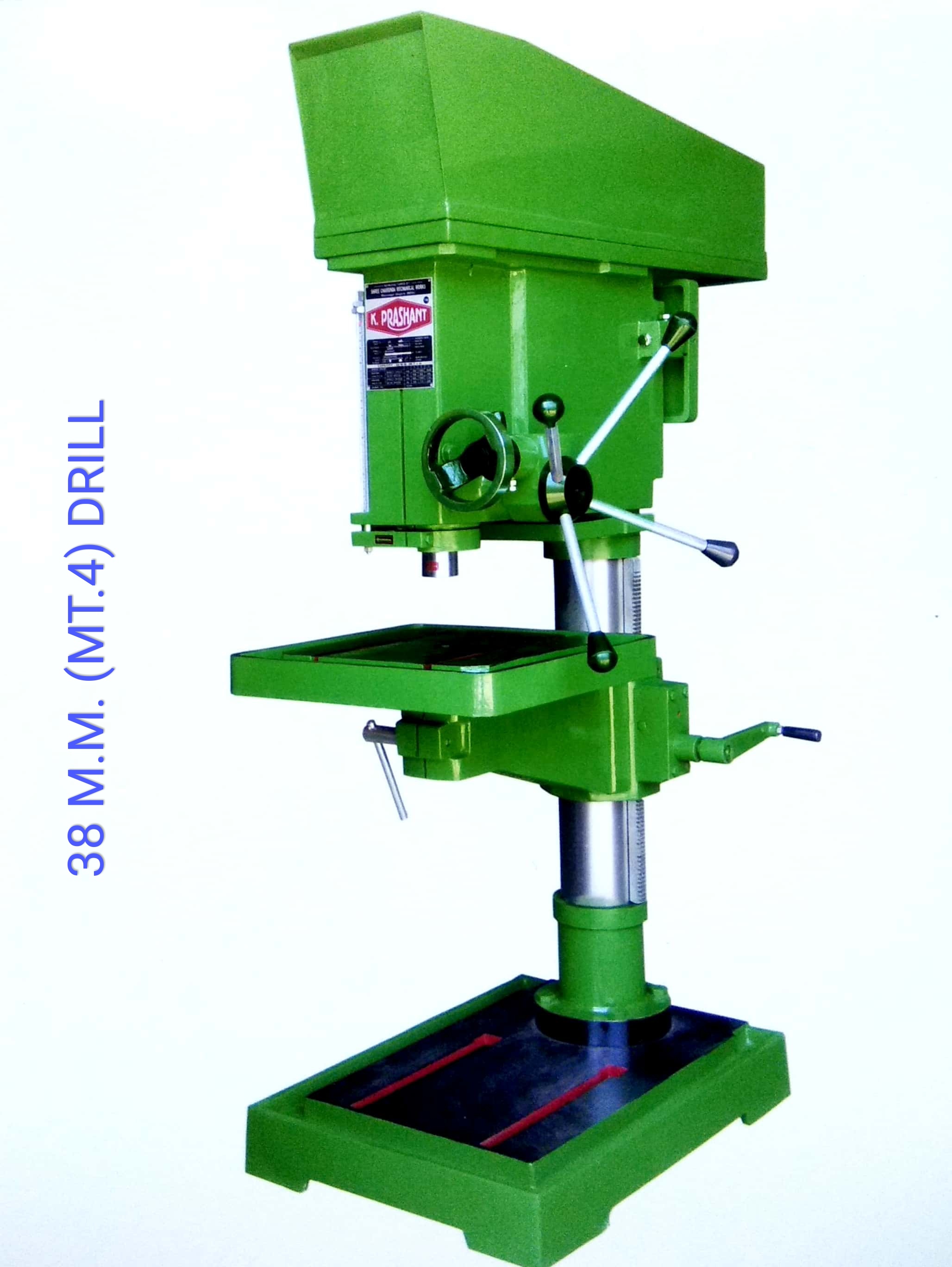

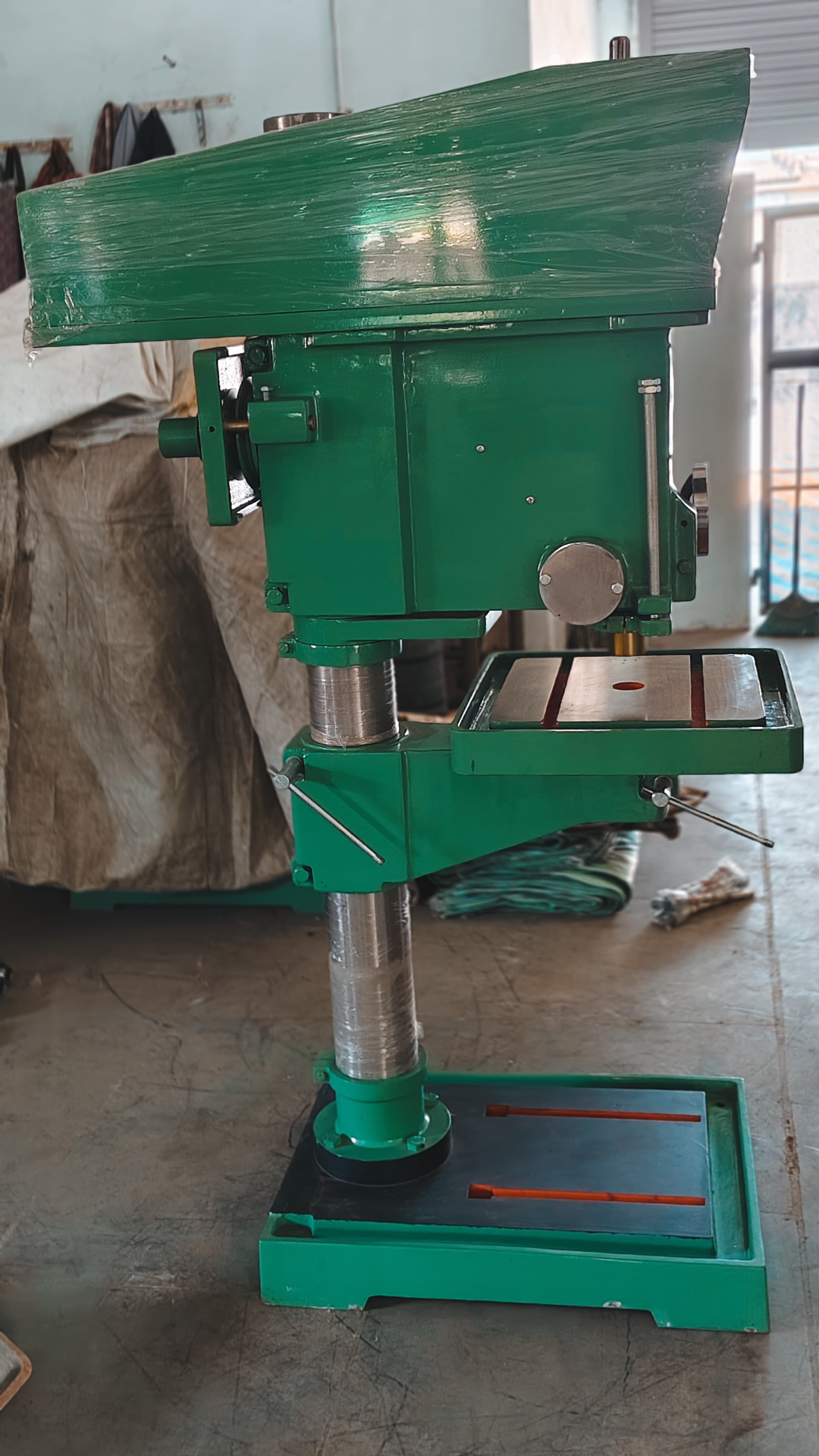

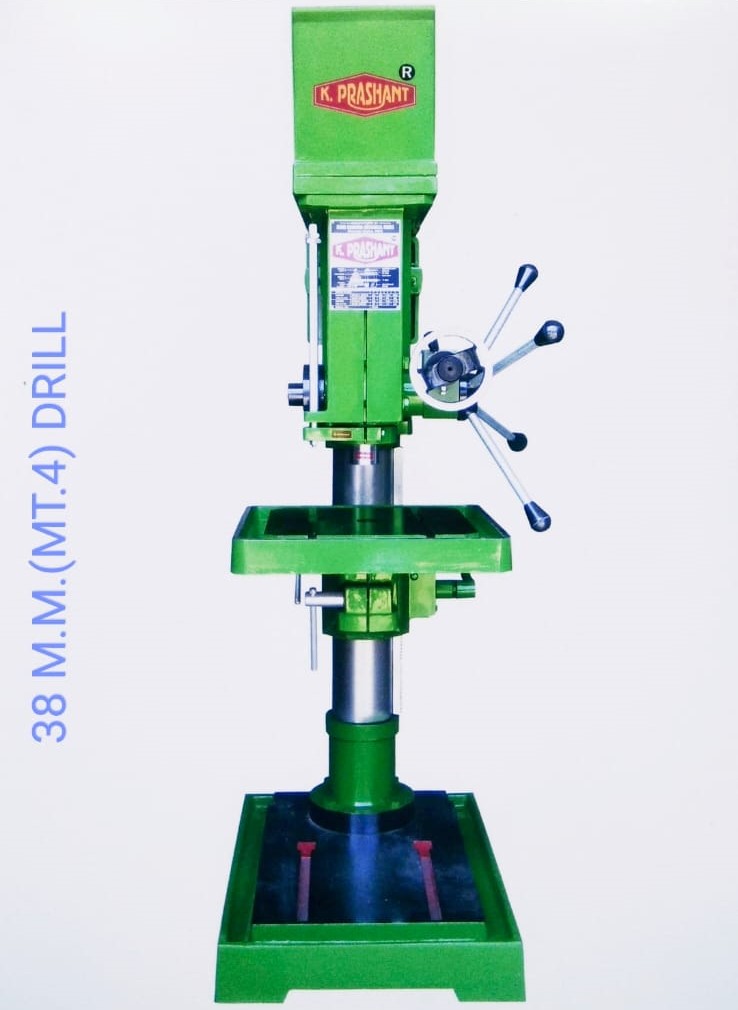

38mm (MT-4) Pillar Drill Machine
Shree Chamunda Mechanical Works manufacture and supply 38mm (MT-4) pillar drill machine with following defined specification.
| 38mm (MT-4) Pillar Drill Machine | |
|---|---|
| Drilling Capacity | 38 mm |
| Spindle Travel | 247 mm |
| Taper in Spindle | MT-4 |
| Tilting Working Table | Fixed |
| Pillar Diameter | 120 mm |
| Spindle Nose to Table Distance | 595 mm |
| Distance from Spindle Nose to Base | 1050 mm |
| Distance from Spindle Centre to Pillar | 317 mm (Max) / 12.50" |
| Table Travel | 700 mm |
| Number of Speed | 8 Speed |
| Range of Speed (RPM) | 70 to 2000 |
| Table Size | 430 x 430 / 580 x 580 |
| Overall Base Size | 480 x 690 mm |
| Overall Height with Pulley Guard | 1450 mm |
| Pillar Length | 1860 mm |
| V-Belt | B-60" |
| Weight (Approx) | 340 kg |
| Motor | 1.5 / 2 HP, 1440 RPM (3-Phase) |
| Shipping Wooden Case Size (L x W x H) | 860 x 460 x 1800 mm |
| Accessories with machine | Motor Pully, Motor Plate |
| Extra Accessories | Electric Motor, Drill Chuck, Arbour, Switch, V-belt |
