Prashant Drill is rebranded as
K. Prashant Drill

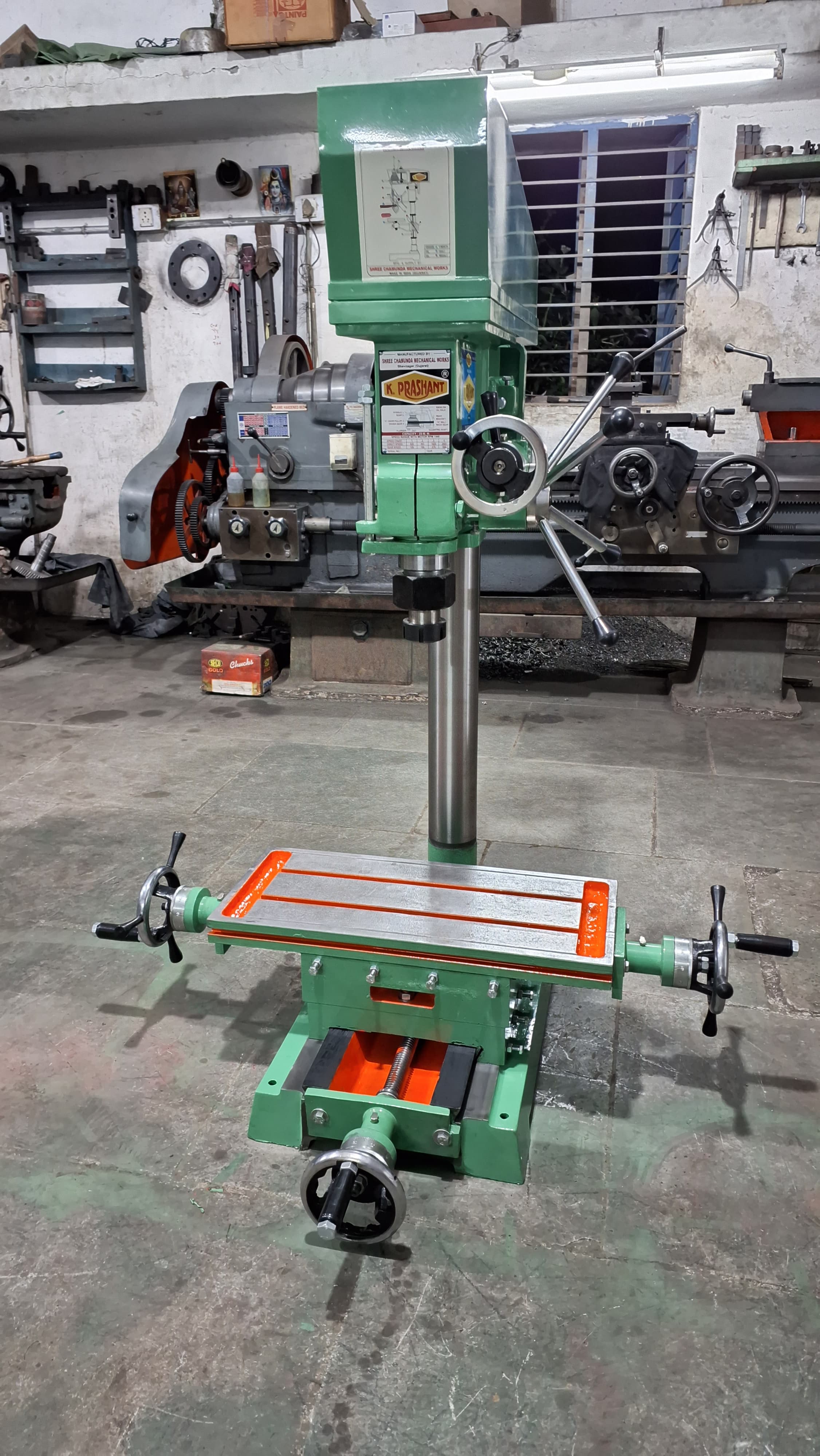

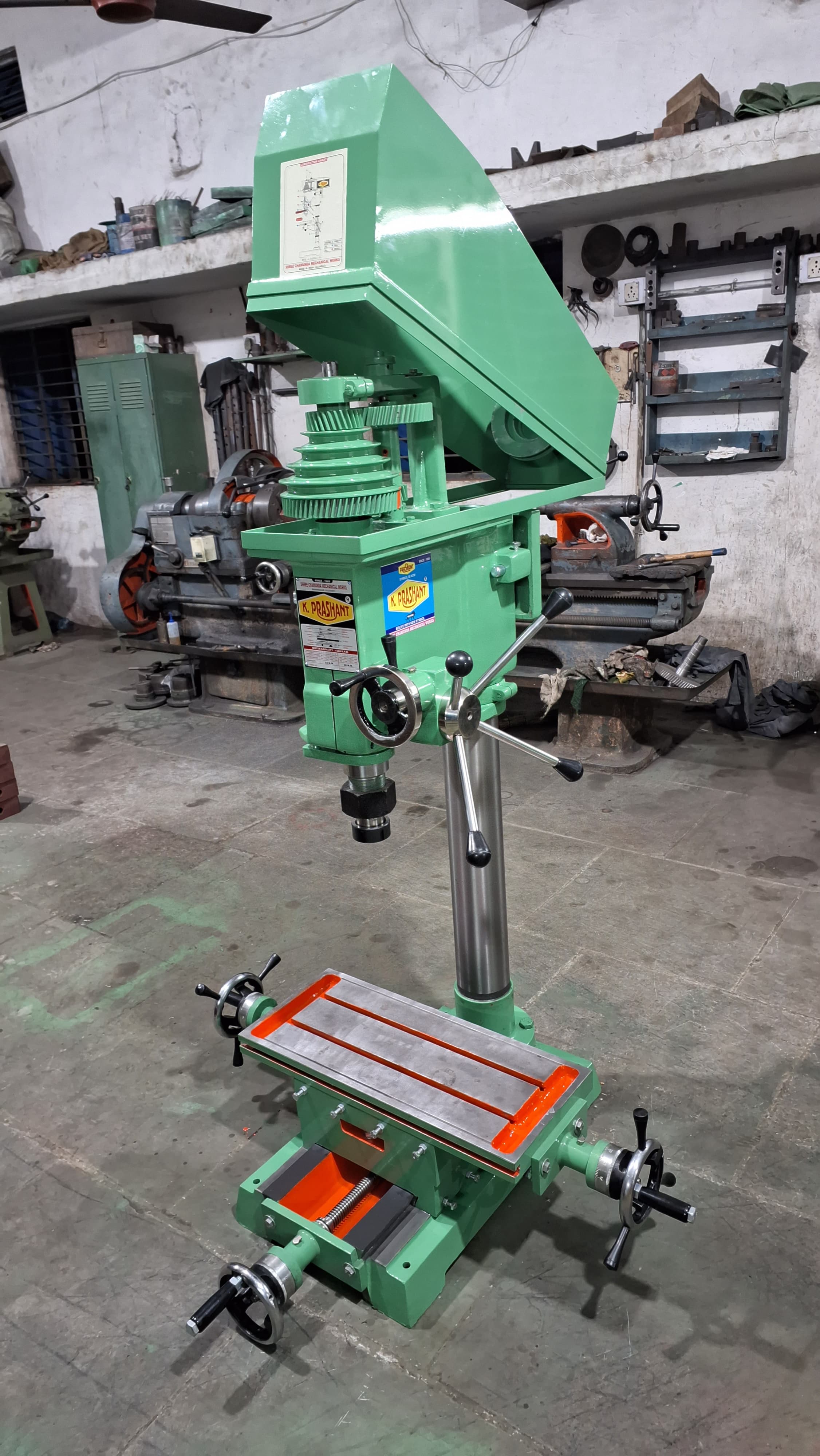

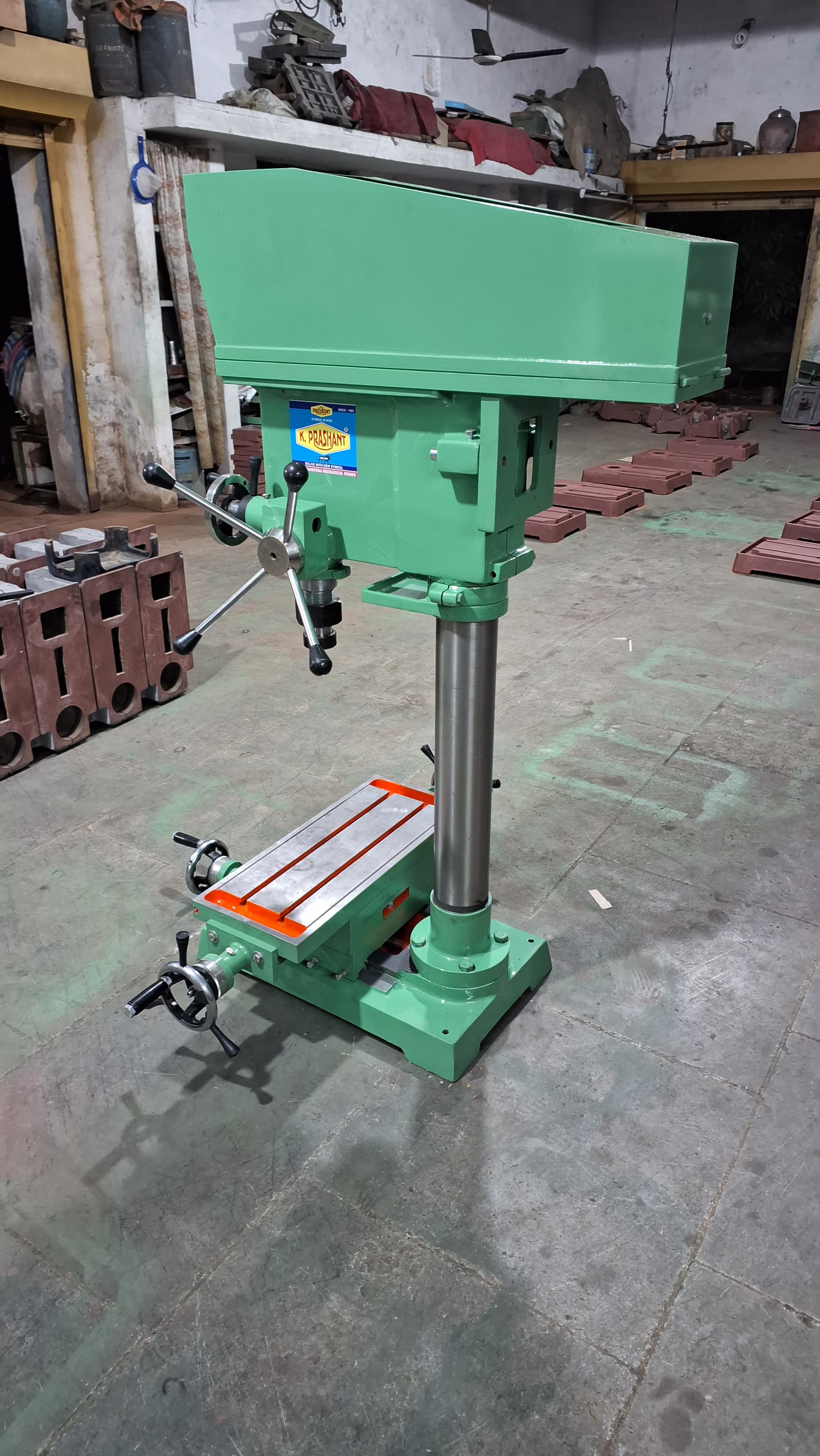

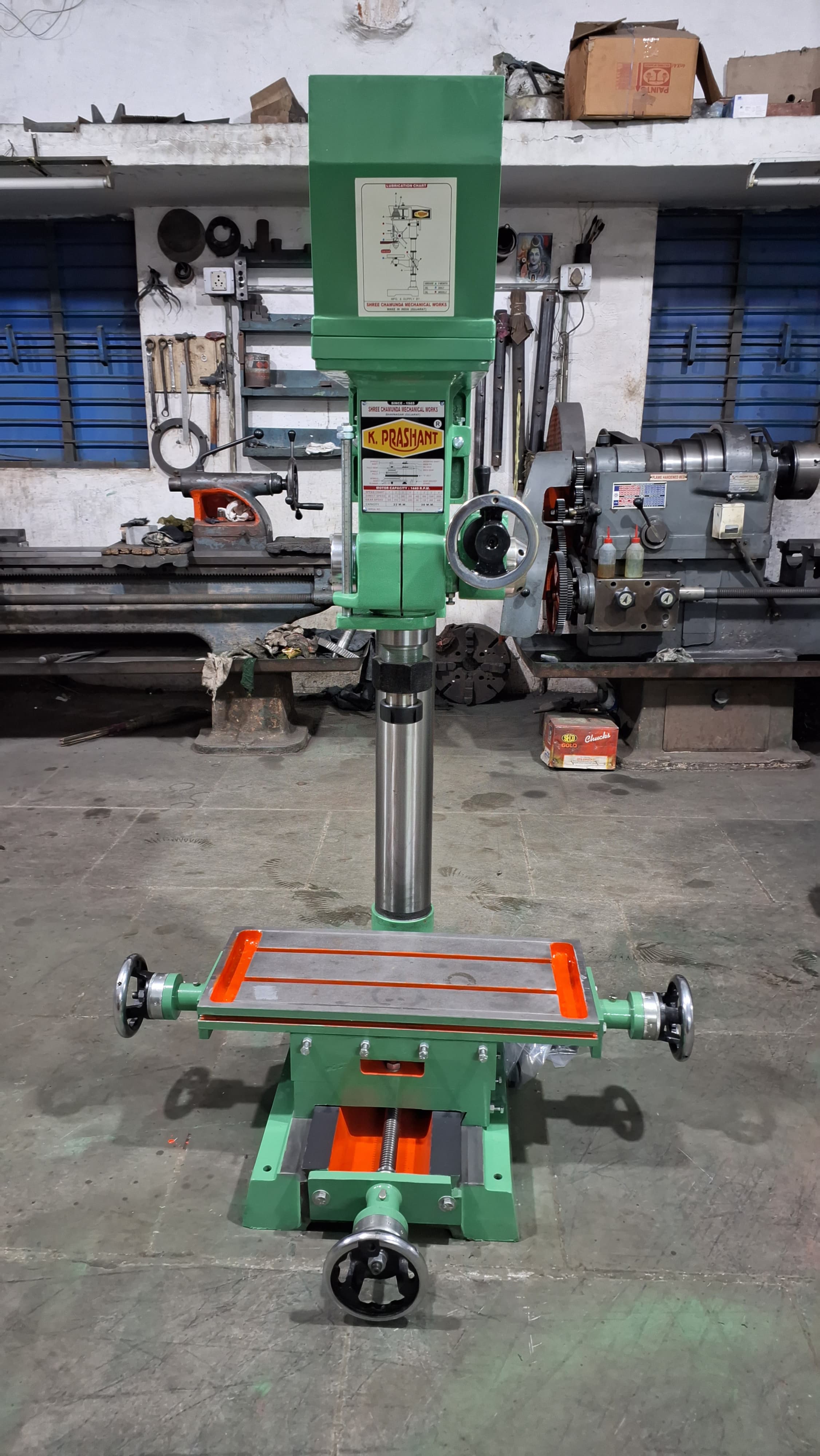

32mm (MT-4) Pillar Drilling cum Milling Machine
Shree Chamunda Mechanical Works manufacture and supply 32mm (MT-4) Pillar Drilling cum Milling Machine with following defined specification.
| 32mm MT4 Pillar Drilling Cum Milling Machine | |
|---|---|
| Drilling Capacity | 32 mm (1-1/4") |
| Diameter of Ram | 72 mm |
| Autofeed Range | Finefeed |
| Collet Holder | MT-4 |
| Spindle Travel | 203 mm (8") |
| Tapping in M.S. | 25 mm |
| Boring in M.S. | 25 mm |
| End Milling in M.S. | 15 mm |
| Overall Dimensions (L x W x H) | 625 x 375 x 115 mm |
| Max Distance Spindle Nose to Table | 650 mm (25") |
| Working Table | 600 x 250 mm |
| Column Diameter | 108 mm (4 2/8") |
| Column Height | 1090 mm (43") |
| Longitudinal Travel | 400 mm (16") |
| Cross Travel | 306 mm (12") |
| Spindle Nose Bore | MT=4 |
| Speed Range | 90 to 2265 RPM (8 Speeds) |
| Motor Speed | 1440 RPM |
| Motor | 1.5 HP / 2 HP |
| V-Belt | B-53/55 |
| Weight of Machine | 320 kg (Approx) |
| Accessories with Machine | Motor Pully, Motor Plate, Driff key |
| Extra Accessories | Electric motor, Drill Chuck, Arbor, Switch, V-Belt, Wire and Pin |
